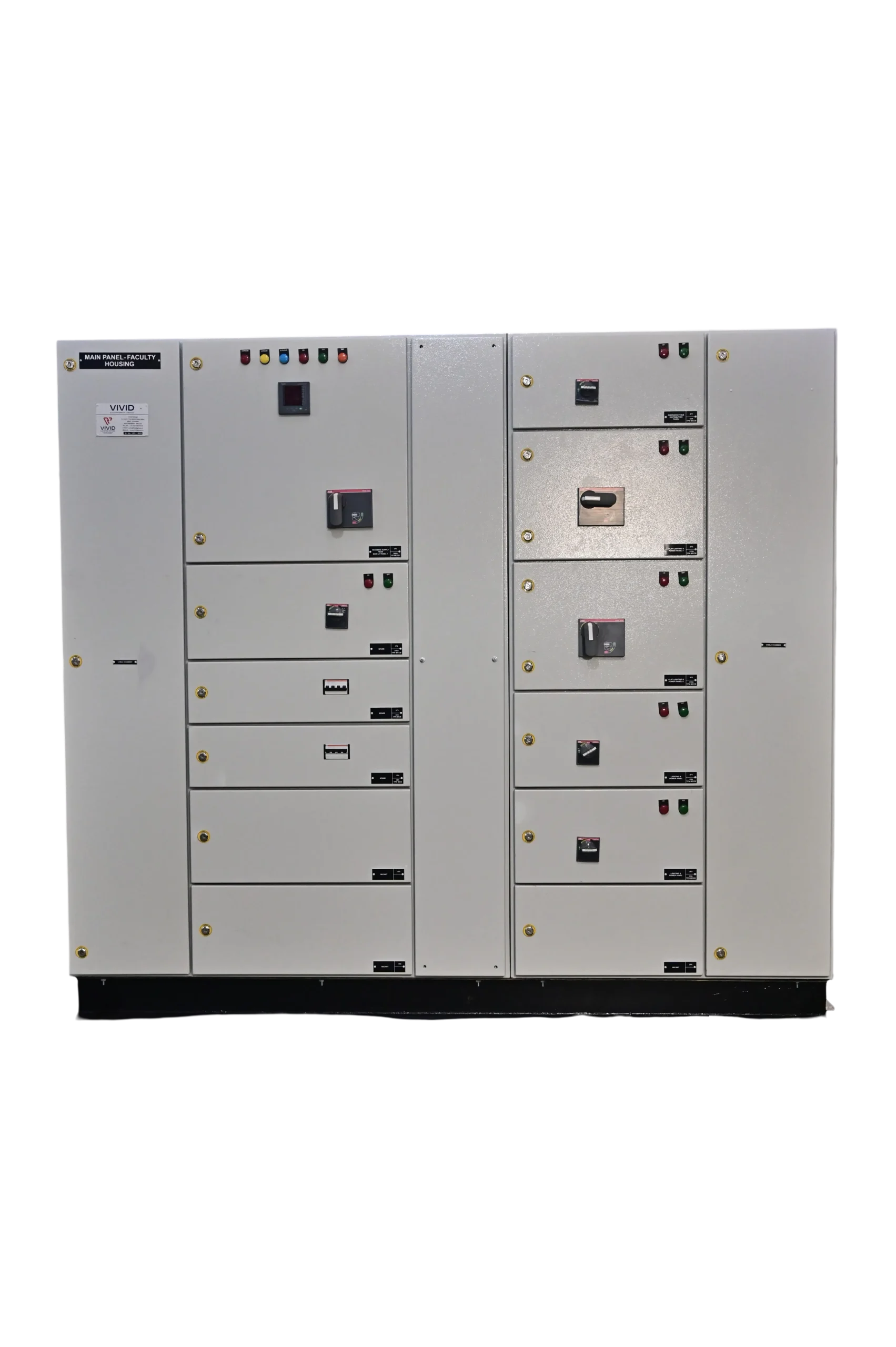

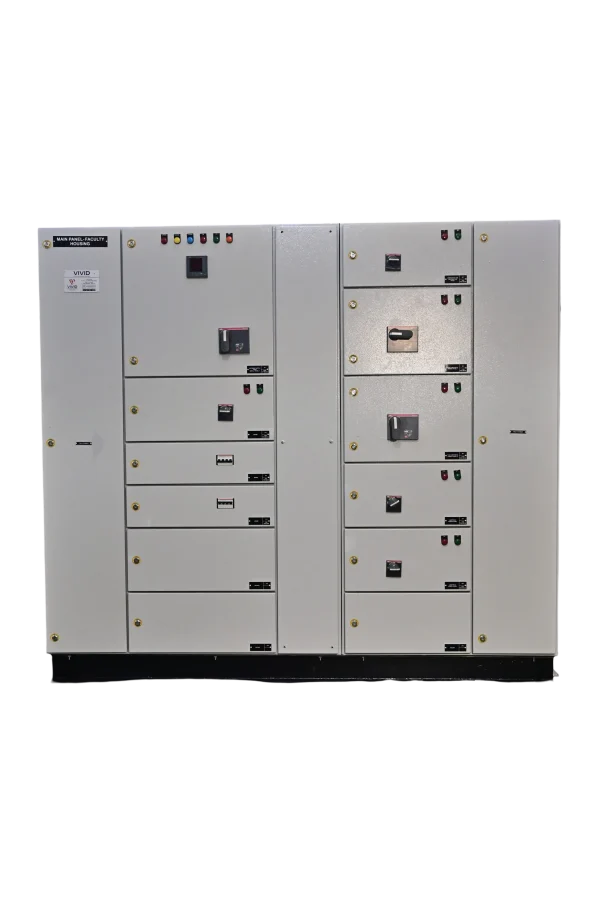

Low Voltage Switch Board

Low Voltage Switch Board

Low Voltage Switch Boards Panels

Power Control Centers (PCC)
Indoor and outdoor versions available with top and bottom busbars.
Motor Control Centers (MCC)
Draw-out and fixed versions available in MS and SS enclosures.
DG Synchronizing & Load Sharing Panels
Up to 12 DGs can be synchronized to run in parallel.
VFD and Soft Starter Switchboards
Available with DOL and bypass versions, with HVAC cooling for harsh conditions.
APFC Panels (Contactor / Thyristor)
Range available from 25 KVAr to 2000 KVAr.
PLC and SCADA Panels
PLC panels with ABB or Allen Bradley PLCs.

Technical Specifications

Reference Standard IEC: 61439-1 & 2: 2011
Degree Of Protection IP-42 / 43 / 52 / 54
Form of Separation 2b / 3b / 4b & up to Type 6
Customizable Fully bolted and modular design
Communication Yes available / IEC 61850

Product Specifications

Specification Details
Compliance and Certification Complies with IEC 61439 and Seismic zone IV
System 3 Phase 3 or 4 Wire
Operational Current Up to 6300 A
Rated Frequency 50 Hz / 60 Hz
Insulation Level Up to 1000V
Rated Short Time Withstand Current 25 KA, 35 KA, 50 KA, 65 KA, 70 KA, 85 KA, 100 KA
